고해상도 DIGITAL MICROSCOPE : WHAT WE OFFER (TZ.M-Series)

  • 고해상도 DIGITAL MICROSCOPE
    : WHAT WE OFFER (TZ.M-Series)

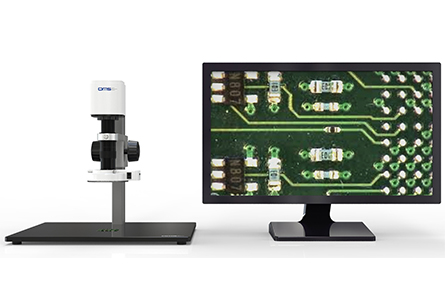

    Launched in 2015 as Korea’s first, the TZ.M Series 2D Digital Microscope delivers high-resolution images directly to a monitor without a PC. Trusted by Samsung& Electro-Mechanics, LG, and Amkor, it sets the standard in digital microscopy.
    2015년, 한국 최초로 선보인 TZ.M 시리즈 2D 디지털 현미경은 PC 연결 없이도 모니터에 직접 고해상도 이미지를 구현합니다. 삼성전자, 삼성전기, LG, 앰코 등 글로벌 기업들이 신뢰하는 디지털 현미경의 새로운 기준을 제시하며 업계를 선도하고 있습니다.

■ Key Features of 4K TZM-APO Series

• 4K High-Resolution Fast Live Image Output
- UHD 3840(H) × 2160(V), 72 fps, Bulit in 2D measurement tools, Live EDF & Stitching
• APO-Grade High-Resolution 10:1 Zoom Lens
- Corrected for chromatic aberration
- St magnification: ×39 ~ ×387 (on 27" monitor), max ×774 (WD 39 mm)
• Par-Focal & Par-Centric Design
- Ensures high operability CLICK-STOP function for enhanced measurement precision
• High-Brightness LED Illumination
- 4 segment control RL LED & FTG (UTG) inspection LED Illumination
• New ST-450, ST-150II Series Stand
- Wide-area base stand with convenient adjustment knob
- Compact Size 400 × 350 × 350~550 mm
